Electrospinning & electrospraying

Fluidnatek® is the brandname of electrospinning & electrospraying equipment designed  by Bioinicia. We have a full range of electrospinning machines to cover all needs at your lab for research  activities and even for pre-industrial purposes (for industrial production equipment please go to the Process Engineering section). From a benchtop lab electrospinning machine to a pilot-scale plant as well as intermediate solutions of electrospinning apparatus meeting the requirements and needs of our customers. Moreover, for those customers requiring a special electrospinning device according to their particular specifications, our Engineering Department is able to customize any Fluidnatek electrospinning machine in order to fulfil demands made by every customer. See below the different Fluidnatek machines and features:

Testimonials

Fluidnatek LE-10

The Fluidnatek LE-10 is a benchtop laboratory tool for proof-of- concept and feasibility studies of new materials and formulations. This electrospinning device is designed to fit into small lab spaces, the LE-10’s ergonomic design and ease of use enable an efficient workflow and make it an ideal system for research groups interested in starting to investigate the potential of electrospinning or electrospraying. Ideal electrospinning equipment for a basic, first approach to electrospinning – electrospraying technologies.

Selected specs and features:

  • Simple design for proof-of-concept and feasibility studies of new materials and formulations
  • Compact, lightweight electrospinning machine type “benchtop”
  • Built to fit into small lab spaces
  • Solvent resistant for effective cleaning
  • Touch control interface
  • Coaxial electrospinning configuration
  • Exchangeable rotating collectors with scanning motion emitter
  • Extraction fan
  • Safety interlock
  • CE certified and UL compatible
Fluidnatek LE50

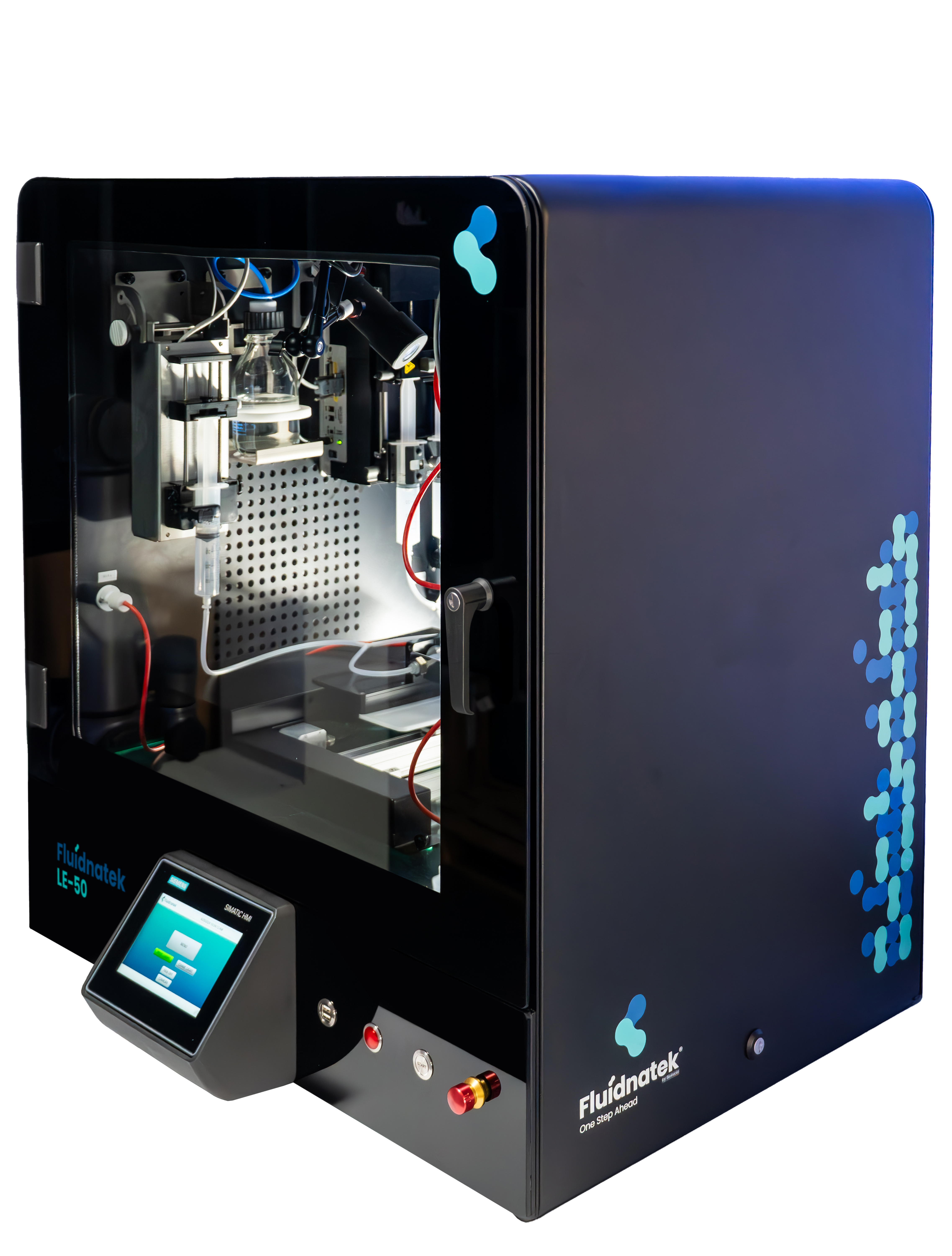

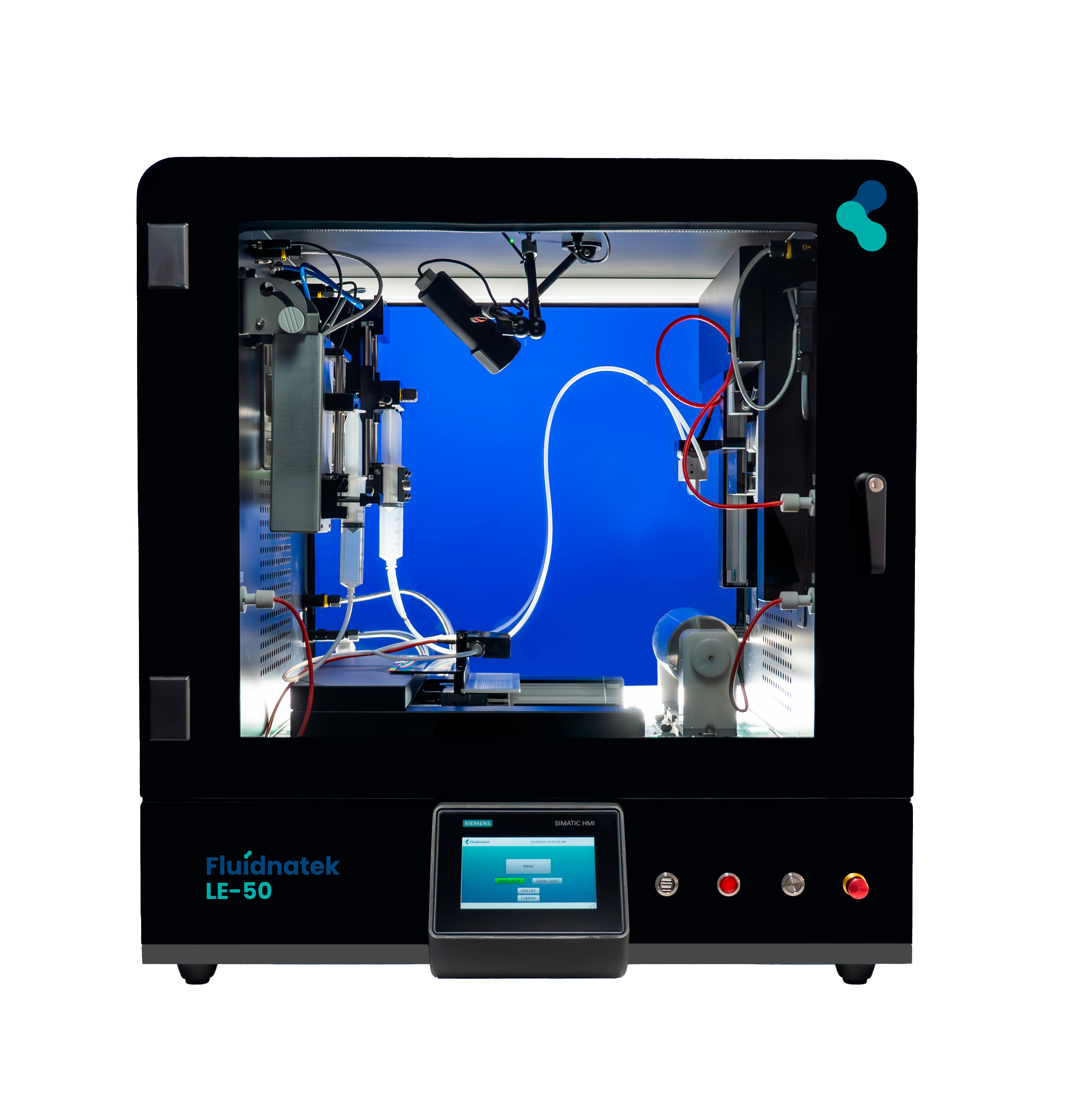

Fluidnatek LE-50

The Fluidnatek LE-50 is a compact laboratory benchtop machine as powerful as an advanced research station. Designed with adaptability in mind, the highly modular LE-50 electrospinning device can be easily configured for a variety of electrospinning or electrospraying tasks. Crucially, it is compatible with an AC unit for climate control, which can be added at any time, making it an ideal machine for conducting precise research or development activities. All Fluidnatek electrospinning equipment is compatible all along the range of machines for doing the scale up from lab stage to manufacturing.

Selected specs and features:

  • Compact design for small laboratory spaces
  • Easily configured for variety of tasks
  • Advanced electrospinning machine with hygienic design
  • Solvent resistant for effective cleaning and cleanroom compatibility
  • Touch control interface with data logging multi user-level access
  • Coaxial electrospinning configuration
  • Exchangeable rotating collectors with scanning motion emitter
  • Optional second, independent spinning stage for processing two materials at the same time
  • Compatible AC bench unit for temperature and humidity control
  • Extraction fan to exhaust solvent vapours
  • Safety interlock
  • CE certified and UL compatible
  • Machine Qualification package available to enable GMP or ISO13485 process validation
Le 10

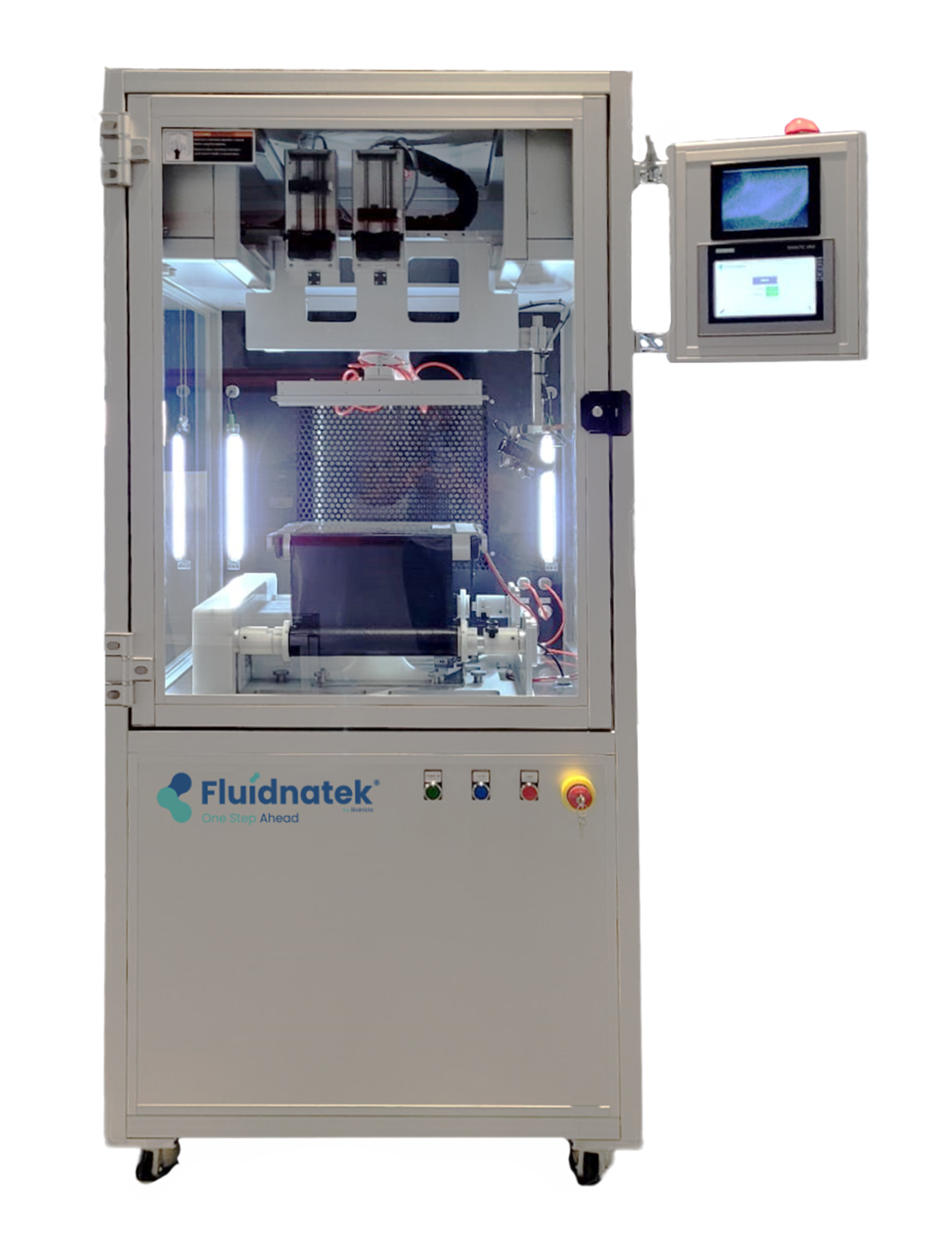

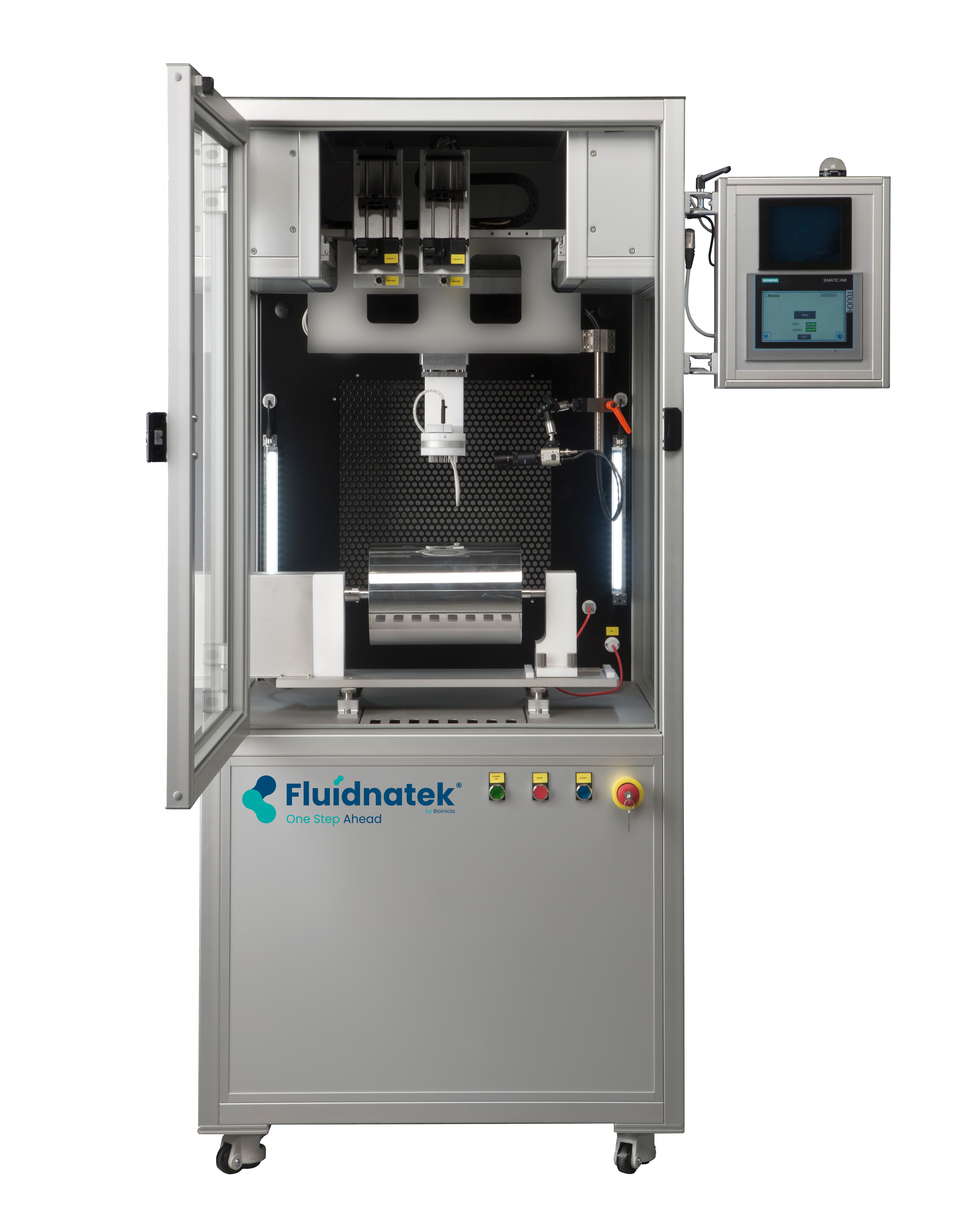

Fluidnatek LE-100

The electrospinning machine Fluidnatek LE-100 is an advanced R&D tool with the flexibility to suit even the most advanced electrospinning or electrospraying projects. With a large experimental chamber and wide range of optional features, the LE-100 is an electrospinning apparatus which can be adapted to any task. Crucially, it is compatible with an AC unit for climate control, which can be added at any time, making it an ideal machine for conducting precise research, development, or small-scale production activities. Ideal electrospinning equipment for advanced research, extremely flexible for carrying out all kind of experimental arrangements and able to be equipped with non-conventional advanced features.

Selected specs and features:

  • Equipment choice for advanced development projects
  • Large experimental chamber for flexible configuration
  • Ultimate control of all processing parameters
  • Ultra-advanced electrospinning device with hygienic design
  • Actively regulated exhaust system with pressure sensing
  • Coaxial electrospinning configuration (or even tri-axial)
  • Solvent resistant for effective cleaning and cleanroom compatibility
  • Touch control interface with data logging multi user-level access
  • Up to 20 emitters for increased productivity
  • Programmable X, Y and Z axes motion for patterned deposition
  • Exchangeable rotating collectors with scanning motion emitter
  • Optional second spinning stage for processing two materials at the same time
  • Compatible AC unit for temperature and humidity control
  • Safety interlock
  • CE certified and UL compatible
  • Machine Qualification package available to enable GMP or ISO13485 process validation
Le 100

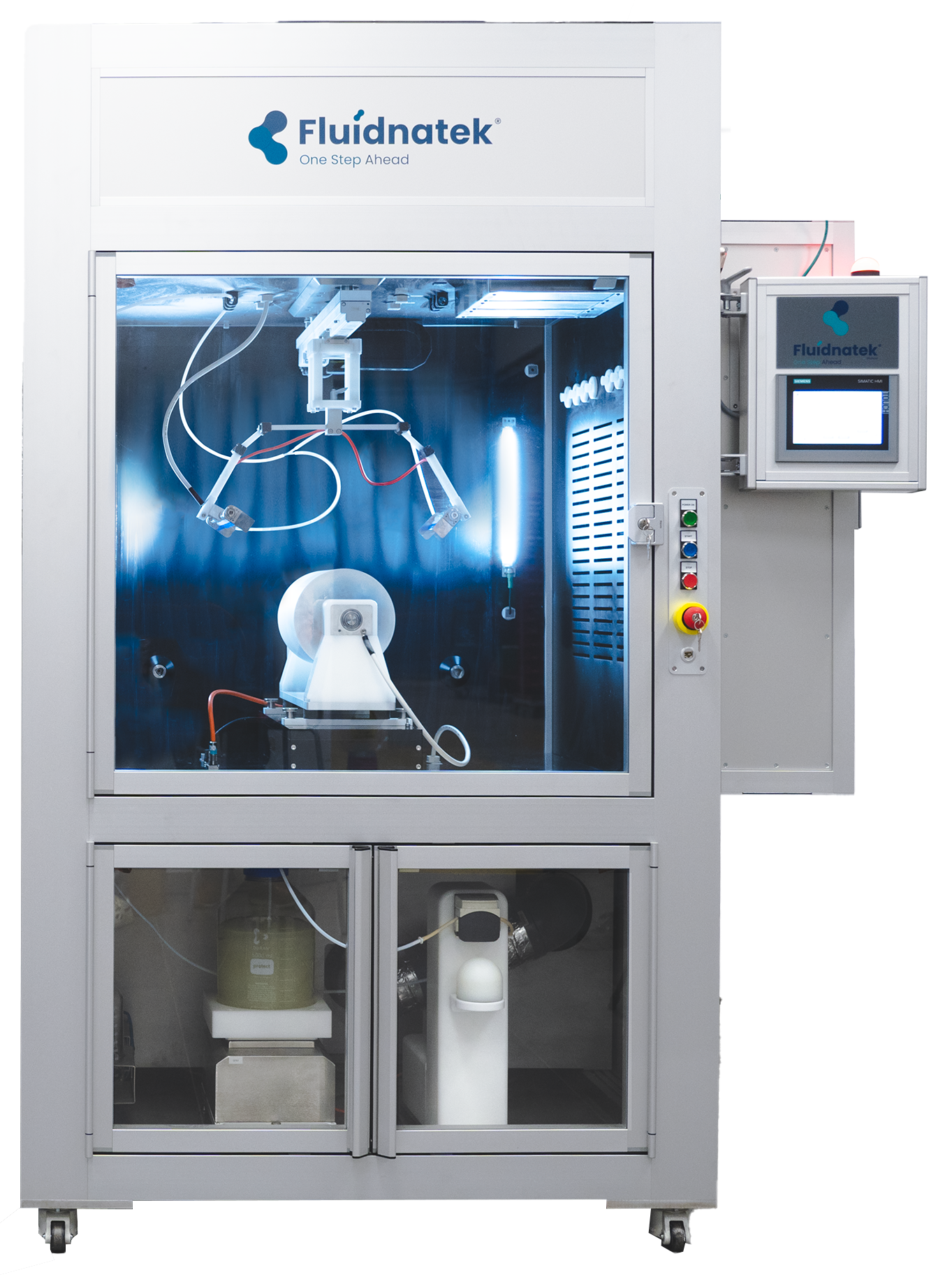

Fluidnatek LE-500

The Fluidnatek LE-500 is an electrospinning machine conceived to be a pilot-line production tool that provides all of the capability needed to develop a product from initial concept to pilot-scale manufacture. With roll-to- roll collection, large-volume solution reservoirs, and high-throughput multi-emitter spinning heads, the LE-500 is the ideal electrospinning equipment for fabrication of pre-production volumes of production-quality materials. However, the LE-500 can be run either in R&D mode or in manufacturing mode, that way being a flexible electrospinning device as well.

Selected specs and features:

  • Configurable for R&D and/or pilot-scale production
  • Pilot-production plant with hygienic design
  • Exchangeable rotating collectors and roll-to-roll with scanning motion emitters
  • Multi-emitter spinning heads for high-throughput electrospinning or electrospraying
  • Configuration for coaxial electrospinning (or even tri-axial)
  • Large-volume solution feeding system for extended production batches (single-phase or coaxial)
  • Solvent resistant for effective cleaning and cleanroom compatibility
  • Touch control interface with data logging and multi user-level access
  • Compatible AC unit for temperature and humidity control
  • Electrospinning apparatus equipped with actively regulated exhaust system preventing the solvent vapours to escape even with the door opened
  • Safety interlock
  • CE certified and UL compatible
  • Machine Qualification package available to enable GMP or ISO13485 process validation
Le 500
